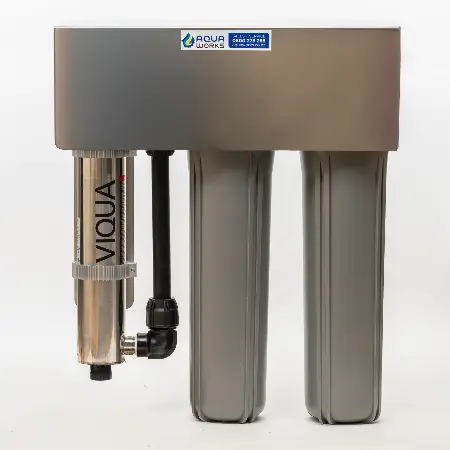

Aqua Jumbo – High-Capacity UV Water Filter For Safe Drinking Water
Built around the Viqua VH410 UV system
$1,645.00 excl. GST
- High-performance UV disinfection kills 99.99% of harmful bacteria and viruses.
- High-capacity UV water filter for larger homes (3 to 5 bathrooms) and light commercial use.
- Reliable disinfection for rainwater, bore water and untreated surface water.
- Twin 20 inch heavy-duty, WaterMark-approved Alpine Pure Big Blue housings.
Powerful yet compact, the Aqua Jumbo is unbeatable in value and performance. It is WaterMark-certified for compliant, chemical-free water protection.
Not sure which system suits your home? Compare UV systems, or call 0800 278 296 for a free site visit.
Potable water with Aqua JUMBO and Viqua VH410 ultraviolet water filter system
Aqua MINI - Aqua BIG - Aqua JUMBO - we got you covered! Call 0800 278 296 to find the right fit!
High-capacity UV water filtration kills 99.99% bacteria & viruses
Designed as a whole-house UV system for larger NZ homes, Aqua JUMBO comfortably serves 3–5 bathrooms and multiple outlets at once, delivering safe, chemical-free drinking water on demand. With twin 20-inch Big Blue housings and an appropriate pump, its Viqua UV is rated at 130 litres per minute (L/min) at 16 mJ/cm², 70 L/min at 30 mJ/cm² and 54 L/min at 40 mJ/cm² (at 95% UV transmittance). For stream, spring or dam water, we size it to the 40 mJ/cm² rating. Ideal for light commercial use (cafés, B&Bs, workshops, farm sheds), it handles higher flows without compromising disinfection.
Aqua JUMBO - Top water quality with advanced sediment removal
Twin 20″ heavy-duty, WaterMark-approved Alpine Pure Big Blue/Jumbo housings: 100% polypropylene housings, heads materials complying with NSF/ANSI Standard 42. Supplied with Alpine Pure gradient-density pre-filters: 20 µm + 1 µm (NSF/ANSI 42) to step down sediment, improve clarity, and boost UV transmittance. Built-in pressure gauges make it easy to monitor differential pressure for timely cartridge changes, maintaining high flow and low pressure drop while protecting the UV chamber.
WaterMark certified & NSF/ANSI 42: Viqua VH410 UV water filtration system
Aqua JUMBO’s twin 20″ Alpine Pure Big Blue/Jumbo housings carry the WaterMark Certificate of Conformity, all wetted plastics are 100% polypropylene with materials complying with NSF/ANSI Standard 42 for drinking-water contact, ideal for NZ installs under G12/AS1 (use a licensed plumber). The UV stage (Viqua VH410) uses a food-grade stainless-steel reactor with a low-pressure, high-output UV-C lamp (≈254 nm) inside a high-purity quartz sleeve for maximum UV transmission.
Best performance, compact design - reliable UV water disinfection all year round
Aqua JUMBO UV filtration system is built for NZ's harsh weather conditions, with exterior or interior installation possible. The heavy-duty 304 stainless-steel bracket, cover, bolts and washers resist corrosion and provide rigid, long-term support in exposed locations, protecting the UV reactor and housings. Clean service access and secure cable routing simplify maintenance. Backed by a 5-year structural warranty on mounting hardware for peace of mind.
Made in Canada, built for NZ - Viqua premium quality & reliability
Made in Canada by VIQUA, the world's largest supplier of residential & light-commercial UV water disinfection systems, the VH410 at the heart of Aqua JUMBO brings global credibility & parts support. In Australia/NZ, the same technology is widely known under the Sterilight & Trojan names. Unbeatable value and performance come from certified housings, twin pre-filters that boost UV transmittance, up to 54 L/min at ≥40 mJ/cm², making it the perfect choice.
Specifications
Specification for Aqua Jumbo
| Model/ Brand | Viqua VH410 |
| US Public Health 16mJ/cm2 @95% UVT | 34 GPM (130 lpm) (7.8 m3/hr) |
| VIQUA Standard 30mJ/cm2 @95% UVT | 18 GPM (70 lpm) (4.2 m3/hr) |
| NSF?EPA 40mJ/cm2 @95% UVT | 14 GPM (54 lpm) (3.3 m3/hr) |
| Inlet/ Outlet Port Size | Combo ¾” FNPT/1” MNPT |
| Electrical Voltage | 100-240V/ 50-60Hz |
| Power Consumption | 60 W |
| Lamp Watts | 46 W |
| Maximum Operating Pressure | 8.62 bar (125psi) |
| Ambient Water Temperature | 2 – 40*C |
| Lamp Type | Sterilume ™ -HO (High output) |
| Chamber Material | 304 SS |
| Dimensions | 23 1/2″ x 3 1/2″ (59.6 cm x 8.9 cm) |
Pre Filters: Alpine Pure gradient density pre-filters, complying with NSF/ANSI Standard 42
- 1 x 20″ Jumbo 20 micron filter
- 1 x 20″ Jumbo 1 micron filter
Housing: Heavy duty 304 stainless steel UV bracket, cover, bolts and washers
Construction: Weatherproof construction for exterior/ interior use
5 Year Structural Warranty
Aqua Works Guarantee
At Aqua Works, we guarantee E. coli*-free drinking water that meets New Zealand drinking water standards and all legal requirements.
Applies to rainwater and bore water with the right pre-treatment, when Aqua Works installs or services your UV system and keeps servicing it at the agreed intervals (usually every 12 months). It doesn’t cover surface water from streams, rivers, dams or lakes. We can’t take responsibility if your raw water quality changes. Recommended testing: rainwater, none needed; bore water, a full routine chemical test every two years; commercial supplies, E. coli every 3 months plus a full routine chemical test every 12 months.
*E. coli-free means no active E. coli and water that passes NZ drinking water standards.
