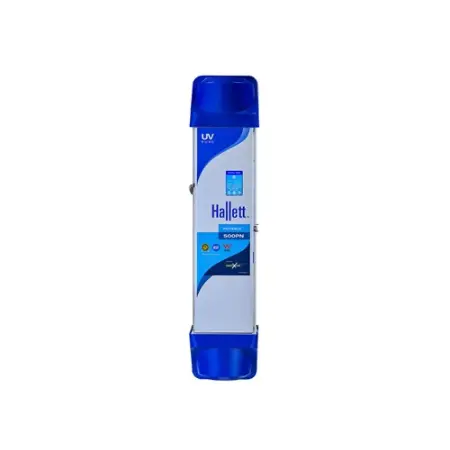

Hallett Validated UV Water Treatment System
Hallett UV Unit 500PN, 750PN, 1000P
$6,250.00 – $17,232.00 excl. GST
-
- NSF 55 Class A certified: Compliance with Taumata Arowai’s regulations.
- Proven effectiveness: Advanced UV technology for safe drinking water.
- Energy efficiency: Low operating costs and compromising performance.
- Low maintenance: Automatic cleaning system ensures continuous safety.
Firstly, this Ultraviolet water disinfection system stands for efficiency and durability. Its compact design allows a seamless integration into existing water systems. Secondly, the Hallett commercial UV filtration system ensures safe water for various applications. Whether running a small business/ office/ cafe or larger communities/ school/ hotel, this Hallett UV system provides the filtration power you need!
Enhance your water quality today!
Hallett validated UV water treatment system features advanced UV Crossfire technologyTM
The commercial UV water filter system provides exceptional disinfection by eliminating harmful microorganisms, bacteria and viruses. First, at the core of this system, the Hallett-validated UV chamber features an innovative dual lamp Crossfire technology. Second, the design positions the UV lamps to irradiate the water from multiple angles, maximising irradiation and reducing shadows where microorganisms could otherwise evade treatment. In addition, the unique air-mounted configuration optimises the flow of treated water through a circular quartz sleeve. This way, it enhances the system's efficiency and reliability. Finally, it has an automatic cleaning mechanism that prevents the buildup of minerals and biofilm on the quartz sleeves. Consequently, it significantly reduces maintenance requirements and ensures continuous, effective operation.
Get in touch on 0800 278 288 and we’ll talk you through this great advantage!

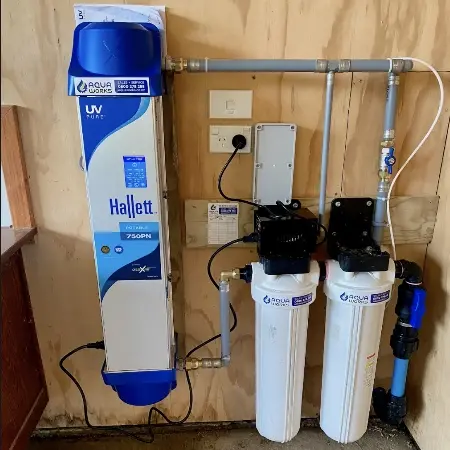

NSF 55 Class A validated UV unit meets New Zealand's Drinking Water Standards
Are you considered a drinking water supplier under the Water Services Act 2021? The Hallet commercial UV filter system guarantees full compliance with New Zealand's drinking water standards and Taumata Arowai requirements. This NSF 55 Class A validated UV unit is the preferred choice for small drinking water suppliers who must ensure their drinking water is potable. Moreover, the certification affirms that the Hallett UV system meets the highest levels of safety and quality, providing reliable access to clean, potable water that adheres to national health standards. Therefore, it is the best solution for small drinking water suppliers looking to deliver excellent water purity confidently.
Choose your size: Hallett commercial UV filtration system for every business need
First and foremost, the Hallett UV system is versatile across various industries, including healthcare, hospitality, food and beverage production, and municipal water supplies like small rural communities, school and early childhood centres. Therefore, it is designed for seamless integration into existing water infrastructures, making it ideal for businesses/ organisations looking to enhance their current water treatment solutions without the need for extensive renovations.
Featuring scalable technology, this Hallett UV disinfection system can adjust to varying operational scales, from small local clinics to large-scale rural schools. Thus, it supports a range of flow rates, starting from 62.5lpm for smaller applications to up to 378lpm for larger operations, ensuring it can grow in capacity as your business expands.
Need UV treated water? Give us a call on 0800 278 296 and discuss your various options!
Real-time monitoring for enhanced safety and cost efficiency
Equipped with advanced real-time monitoring sensors, the commercial UV water filter system meticulously tracks UV intensity, water transmittance (water clarity), and overall system performance. In addition, these intelligent sensors provide real-time feedback and alerts, allowing immediate adjustments to maintain optimal performance and ensure water safety under all operating conditions. Furthermore, it automatically shut off the water supply during critical failures, such as significant drops in UV intensity, ensuring utmost safety.
This UV disinfection system also reduces operational costs by minimising the need for chemical treatments and frequent component replacements. Enhanced with USB data logging and optional Mod-Bus connectivity, it supports remote monitoring and detailed historical data analysis for compliance and operational optimisation. Finally, an inbuilt temperature control system prevents unnecessary alarms and promotes smooth, consistent operations. The intuitive touchscreen user interface further simplifies system management. Therefore, it allows users to easily adjust settings and monitor system status at a glance, ensuring that managing water purity is effective and user-friendly.
Steve's Pros & Cons
Pros of Hallet Commercial UV Filtration System
Most importantly, this commercial UV system in NZ is relatively hassle-free!
First of all, you don’t get sensor failures and issues like with other brands. For example, Viqua, Puretec, and Luminor are all great UV manufacturers. However, the sensors in their UV filtration systems come in contact with the water in the chamber. Consequently, they get dirty more easily, which often causes alarms. Consequently, a tech has to visit the site, clean the UV and chamber or make a costly replacement.
Additionally, whenever you open a sterile UV chamber, for example, to fix a sensor, you must re-sterilise the chamber and pipework. This sensor problem with validated UVs is the biggest problem in New Zealand. Hence the Hallets Validated UV Chamber stands out with a totally different technology that won’t have these problems!
Brilliant UV design with Crossfire Technology
The Crossfire Technology is clever. Two air-cooled UV lamps fire through the water from opposite sides, giving full 360-degree coverage so bugs don’t stand a chance. It’s also easier to service because the lamps are mounted outside the quartz sleeve. There is no awkward dismantling—a big plus in my book.
Hallett’s self-cleaning system
One of my pet peeves with UV systems is mineral buildup and fouling on quartz sleeves, which can degrade performance and increase maintenance needs. Hallett’s automatic cleaning system sorts this out before it becomes a problem, keeping maintenance to a minimum and performance spot on. This feature is crucial for bore water supplies and in areas with challenging water conditions around Warkworth, Snells Beach, and Mangawhai. In addition, It works excellently with silica, which is common in these waters and is more tolerable to other contaminants such as iron and manganese.
Smart sensors and remote monitoring
The system has sensors that monitor performance and let you know if something’s wrong. You can also monitor it remotely. For commercial or high-risk installs, that kind of reassurance is invaluable.
Properly certified UV system
This isn’t some off-the-shelf cheapie. The Hallett range includes NSF 55 Class A and EPA-validated models, so you know it meets strict standards for potable water. For this reason, it is essential for Drinking Water Suppliers and commercial operations.
Great for tricky UV installations
We’ve used these in applications where water isn’t perfect – whether that’s silica, iron, hardness, or slightly off-colour water – and the system handles it well with the proper pre-treatment in place.
Cons of Hallet Commercial UV Filtration System
The Hallet commercial UV filter system is not cheap
These aren’t budget systems. If you’re looking for the lowest upfront cost, this probably isn’t it. But if you want long-term reliability and peace of mind, the investment is well worth it.
Needs clean power like any other UV system
Hallett uv filtration systems need a stable power supply. If you’re off-grid or in an area prone to outages, you must factor in a UPS or backup to ensure continuous protection.
Water needs to be prepped for UV disinfection process
UV only works if the water is clear enough for the light to penetrate. So, if your source water is murky, you’ll need filtration beforehand. This is not really a fault of the system—it’s just how UV works—but it’s worth knowing. We can sort this out for you if needed at Aqua Works.
No chemical or metal removal with this UV system
Again, this is not Hallett’s fault but just a reality of UV technology. It kills pathogens but won’t remove heavy metals, chlorine, or nitrates. You’ll need other pre-treatments, which we can provide at Aqua Works.
Specifications
Specifications of Hallett Validated UV Chamber 500PN, 750PN, 1000P
| Model | Flow Rate | UV Transmission | UV Dose | Validation |
| Hallett 500PN | Up to 62.5 Lpm | Min. 75% UVT | 40 mJ/cm2 | NSF 55 Class A |
| Hallett 750PN | Up to 104 Lpm | Min. 80% UVT | 40 mJ/cm2 | NSF 55 Class A |
| Hallett 1000P | Up to 378 Lpm | 50- 95% UVT | 16-200 mJ/cm2 | US EPA UVDGM |
Working Conditions for Hallett UV System 500PN, 750PN, 1000P
| Parameter | Specifications |
| Hardness (Water) | Max. 855 mg/L (50 gpg) |
| Iron (Water) | Max 3 mg/L (3 ppm) |
| Temperatur (Air & Water) | 1 – 40°C |
| Water Pressure | 5 – 100 psig (34 – 690 kPa) |
| Relative Humidity (Air) | Max 70% |

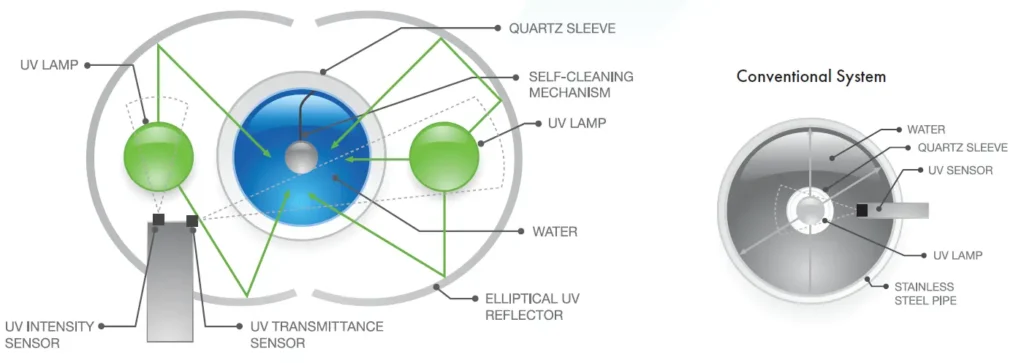

Hallet UV System Crossfire Technology

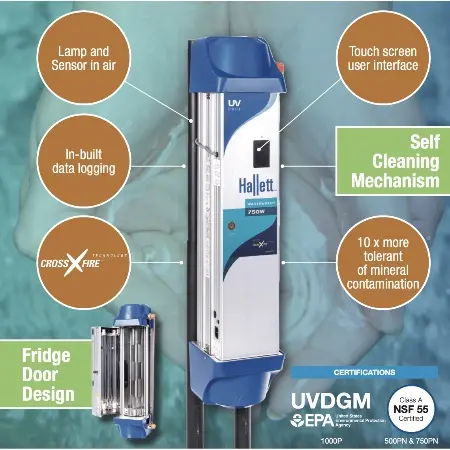

Hallet Commercial UV Filtration System features
- Crossfire Technology
- Self-Cleaning Quartz Sleeve – no manual cleaning required
- Effective disinfection for up to 10x more difficult water
- Air Mounted UV Lamps – no water contact lamp changes
- Dual UV sensor array – real time monitoring
- Built In Temperature Management (Air Cooling & Purge Valve) – reduce false alarms
- Built In Surge Protection – protect against damage from power surges
- Colour Touch Screen Interface – easy to use
- Two dry contacts for warning and alarm signals
- Optional 4-20 mA output with MODBUS connectivity
- Remote start capability
- USB Plug In Port – easy data monitoring
- Optional Shut Off Valves available
- Fully comply with NZ Drinking Water Standards & Taumata Arowai
All three models—Hallett 500PN, 750PN, and 1000P—share the same core features and advanced technology. Specifications listed below apply to each unit. Moreover each of those unit are supported by robust warranties—5 years on structural components, 3 years on electrical parts, and 1 year on bulbs and sensors.
